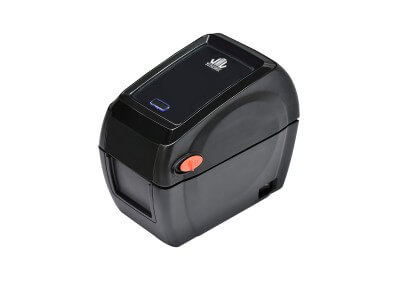

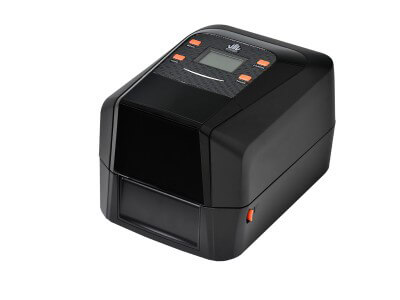

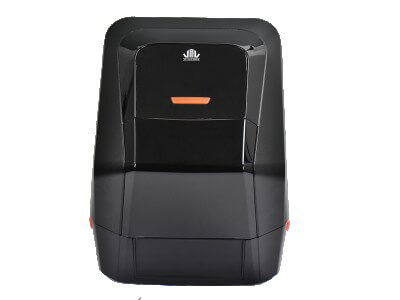

LP433E – 600dpi
High Print Quality，Your Best Choice
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
- Software supports various of database connection
- Free bundled labelling software with friendly inferface
- Cover closing safety design
- 3mm label height support
- Micro print at 600 dpi resolution
| Printing method |
Thermal Transfer / Direct Thermal |
| Resolution |
600 DPI |
| Max. print speed |
76 mm (3″) / sec |
| Max. print width |
105.6 mm (4.16″) |
| Max. print length |
50 mm (20″) |
| Enclosure |
Double-walled plastic |
| Physical dimension |
220mm(W) x 198mm(H) x 288mm(D) 8.7″(W) x 7.8″(H) x 11.3″(D) |
| Weight |
2.5 kg |
| Label roll capacity |
127 mm (5″) OD |
| Ribbon spec. |
300 m, Max. OD 67 mm, 1″ core |
| Ribbon width |
25.4 mm ~ 110 mm (1″ ~ 4.3″) |
| Processor |
32-bit RISC CPU |
| Memory |
8MB Flash-ROM, 16MB SDRAM, SD card slot for expansion up to 32GB |
| Power |
External universal power supply , Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 2.5A, 60W |
| User Interface |
4 buttons, 2 LED , 1 LCD (2.13″, Resolution: 128*64), 1*Buzzer |
| Communication |
USB 2.0, RS-232, USB Host Parallel, Ethemet 10/100 Mbps BLUETOOTH (option)、WIFI IEEE 802.11 b/g/n (option) |
| Sensors |
Reflective sensor (adjustable), Ribbon end sensor Cover open sensor, Paper near- end sensor (option) |
| Internal fonts |
7 kinds of bitmap fonts |
| Bar code |
1D bar code：Code 11, Code 39, Code 93, Code 128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2-of-5, ITF-14, MSI Pleassy, PostCode, Telepen, UPC-A, UPC-E, UCC-128, GS1-128 2D bar code：QR Code, Micro QR Code, PDF417, Micro PDF417, Code 16K, Code 49, Aztec Code, Data Matrix, Grid Matrix, MaxiCode |
| Printer language |
WPL (ZPL, EPL, TSPL, DPL…auto switch) |
| Dealer option |
Peeler dipenser, Cutter, External label stand |
| Label width |
Standard: 15~119mm (0.59″~4.69″) |
| Label thickness |
0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) |
| Label core |
25.4 mm (1″) |
| Label length |
3 ~ 508 mm (0.12″ ~ 20″) |
| Real time clock |
RTC (battery is included) |
| Storage condition |
-40 ~ 60°C, 10~ 90% (non-condensing) |
| Operation condition |
5 ~ 40°C, 25 ~ 85% (non-condensing) |
| Safety regulation |
CE Class B, FCC Class B, CCC, CB, BIS |
| Bundled software |
WinLabel labelling design software、Windows printer driver、Printer utility、DLL SDK library、EXE executive AP for batch print Platform support：Windows XP SP3, Vista, 7, 8, 8.1, 10 and Server 2003, 2008, 2012, 2012R2(32/64 bit)、SDK、Android、ActiveX、VB6.0 |
